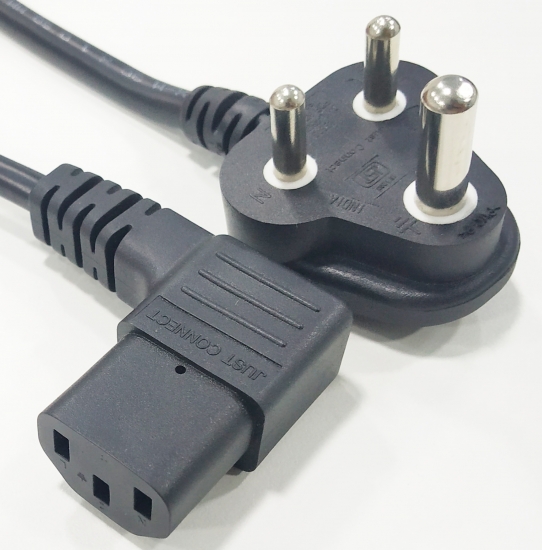

PLUG MODEL: IN6A3 & IS6A3 CONNECTOR MODEL: JC13LA 3 PIN 6A INDIAN PLUG WITH LEFT ANGLED C13 AVAILABLE CABLE SPECIFICATION: 14/0.15 (3C*0.30 SQ.MM) 14/0.2 (3C*0.4398 SQ.MM) 16/0.2 (3C*0.50 SQ.MM) 24/0.2 (3C*0.75 SQ.MM) 32/0.2 (3C*0.1 SQ.MM)


ROHS compliant
  • 6A & 250V~
  • IS 1293 : 2005
  • ISI Mark (available in 1 sq.mm and above) & CE mark
  • IEC 60320-1 C13
  • Solid Brass Pins with Nickel coated
  • Annealed Bare Copper
  • PVC Type - A as per IS 5831 - 84
  • PVC Type ST1 as per IS 5831- 84
  • Black (Can be modified as per customer requirements)
  • LEFT ANGLED C13 CONNECTOR
  • As per customer requirement
  • IS 694 for ISI approved cables
